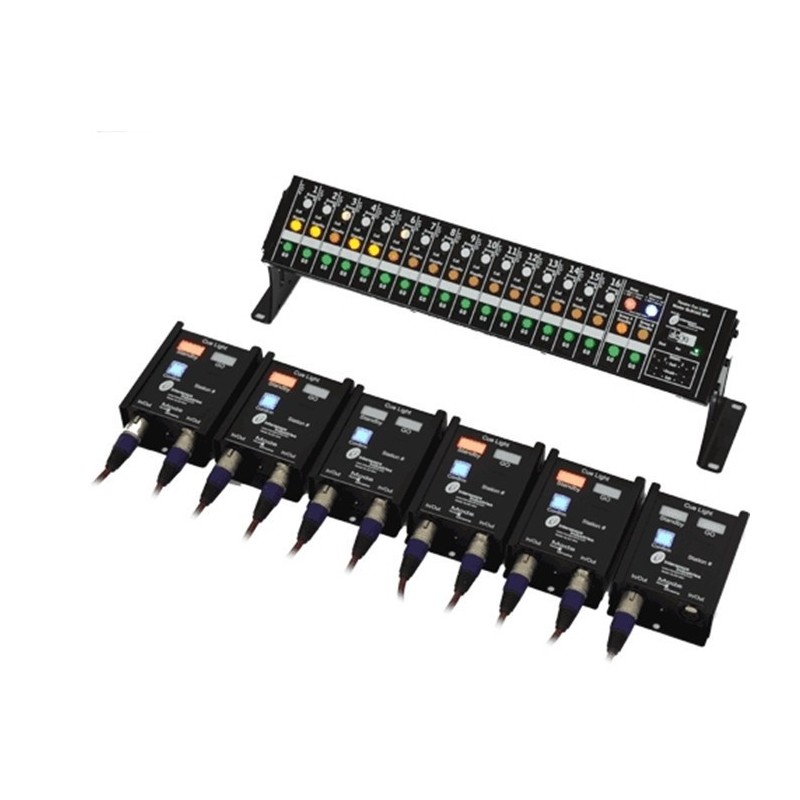

TCB8V4 - TheatreCue with 8 Outstations

The 16-way Control Desk and 8 outstations can be expanded to 40 addressable outstations over 2 km of cable, wired in a standard communications manner using 3-pin XLR connectors. The outstations have a confirm button for acknowledgement with Green go and Red or Amber standby indicators. The Leon Audio Company of Australia has designed this theatre Cueing system. It is unparalleled in its function and versatility.

These are also dimmable if in an area where the audience can see or further discretion is required. A buzzer option on the outstations is available. Up to 6 Master outstations can be connected to expand the number of outstations (each with their universe), and Dual Master mode can be used on the same wiring universe.

Relay outstations and computer interface(RS232 or RS485) are available for this 16W system – due to the low but essential demand for these systems, they are built to order.

The software and any internal hardware designs are owned by Leon Audio. Interspace Industries builds the unit under CE and RoHS directives for the European market. Interspace Industries builds most but not all accessories to this system. All TheatreCue V4 systems from Interspace Industries and Leon Audio are compatible on a hardware level. Software revisions need to be confirmed before purchasing additional systems.
