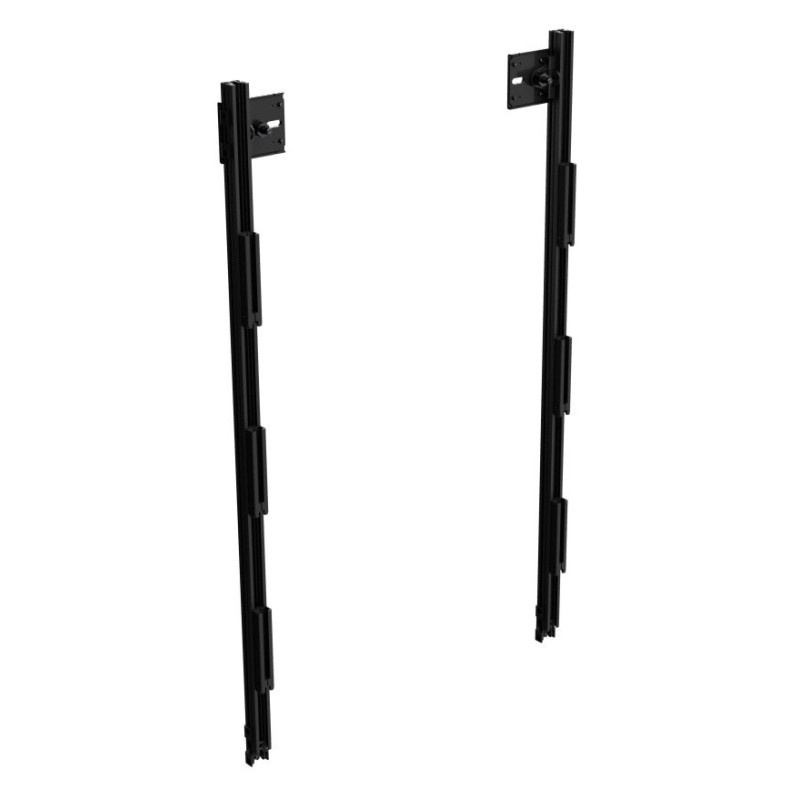

DVM27U3E

The next generation of TiLED™ dvLED Wall Mounts is a patent-pending universal modular system that is compatible with a multitude of interlocking dvLED panels from leading manufacturers. New floating button-capture technology and mounting hardware streamlines specifying, ordering, and installation. One set of part numbers can be ordered and stocked globally to fulfill a variety of video wall installation needs.

Universally compatible
Thanks to new floating button-capture technology and universal mounting hardware, TiLED Series dvLED Universal Wall Mounts are compatible with 90% of interlocking dvLED panels from leading manufacturers such as Absen, Barco, Hikvision, INFiLED, LG, LianTronics, Philips, Planar, Samsung, Sharp/NEC, Sony, Unilumin and more.

Uneven walls? No problem
TiLED dvLED Universal Mounts provide total X-Y-Z axis adjustability to compensate for wall irregularities – resulting in precision pixel alignment for a flawless uniform display. No misaligned pixels or gaps, even with dvLED displays with pixel pitches below 1 mm. Because it’s easy to fine-tune and adjust the position of each mount, installation time is greatly reduced, sometimes even from days to hours. Chief’s new independent Y-axis adjustment at each panel edge helps set a flat and level base for your direct-view LED video wall. Double-depth Z-axis adjustment creates a perfectly flat video wall installation.

Easy to order
Use starter mounts and extender mounts to build your video wall. Starter mounts form the base of your wall. They’re available in three sizes to hold two, three, or four display panels and come in a set of two rails. Next, add extender mounts (also designed to hold two, three, or four displays) to achieve the desired height of your video wall.

Recommended Parts List:

How to order: From the first column in the Recommended Parts List above, select your video wall height (# of rows). Order the SKUs from the next columns for your starter and extender mounts. The quantity needed will be the same as the width of your display. For example, if you’re installing a video wall that’s 7 displays wide by 5 displays high, you will need 7 starter mount sets that hold three panels (DVM27U3) and 7 extender mounts that hold two panels (DVM27U2E).

Helpful hint: The last digit of the part number indicates how many display panels the mount will hold. For example, DVM27U4 holds four panels. The extender DVM27U3E holds 3 panels.

Product Features:
- Easy to Specify - Easy to Order - Easy to Install
- Highly adaptable & stackable
- Sized for interlocking dvLED panels
- Floating button-capture technology is compatible with most panels currently on the market
- Experience a consistent installation process every time with universal mounting hardware
- Scalable & versatile
- Accurate alignment of panels to compensate for uneven installation surfaces with 3-axis adjustments (X-Y-Z axis)
- Double Depth Adjustment: macro and micro-adjustments create flawlessly flat video walls
- Independent Column Adjustment for perfectly level installations

Compatibility:
ABSEN: HC II Pro Series, HC II Series, KLCOB V2 Series, HC Series, A27 Series, ACCLAIM Series, ACCLAIM PLUS Series, ACCLAIM PRO Series
BARCO: IES SERIES, NT Series, IEX Series
CHRISTIE: CORE Series III
HIKVISION: CWF Series, ZWDB Series
INFILED: WP Series, WT Series
JUST VIDEO WALLS: CORE 600x337.5 Series
LEYARD/PLANAR: TWS Series
LG: LSCB Series, LSBB Series
LIANTRONICS: VAII Series, VF Series
PENSAR: TFP Series
PixelFlex: FLEXUltra Revolution V2 Series
PLANAR: MGP Series
Samsung: IEC Series
SHARP NEC: E Series
SILICONCORE: LAVENDER Series
SNA: VE-II Series
SONY: BH Series, CH Series
