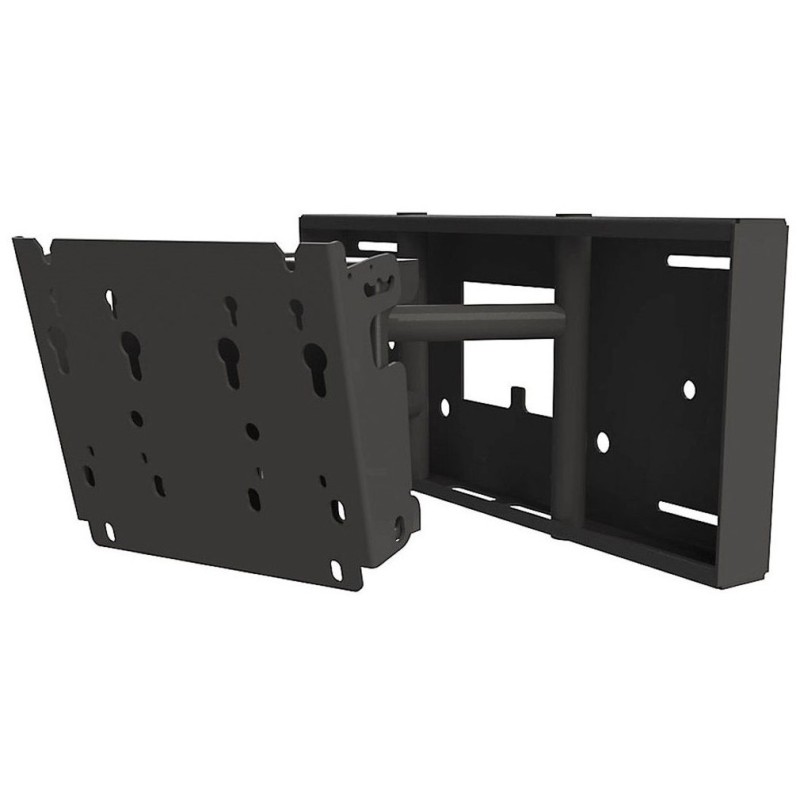

SP850-V2X2

The SP850-V2X2 Pull-out Pivot Mount combines the best features of a wall mount and a pivot arm. In the closed position, the SP850-V2X2 acts as a flat or tilting wall mount. At only 2.73" (69mm) from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the sturdy arm construction smoothly glides the display out 11.18" from the wall and allows the flat panel display to pivot up to 45°. This feature not only enables the display to be positioned for an optimal viewing angle, but it also provides easy access to the back of the display for hassle-free maintenance. The SP850-V2X2 is also ideal in applications where the display needs to be recessed into the wall, custom framed, or aligned into a multi-display wall.

Main features:
- Dedicated VESA® 200 x 200mm mounting pattern
- Retract to hold display 2.73" (69mm) from the wall
- Extend display up to 11.18" (284mm) from the wall
- IncreLok™ tilt provides tilt at 0°, 5° and 10°
- ±1° of roll for horizontal display leveling during installation
- Mounts to 16" wood studs, concrete, and cinder/breeze block
