SP850-UNL

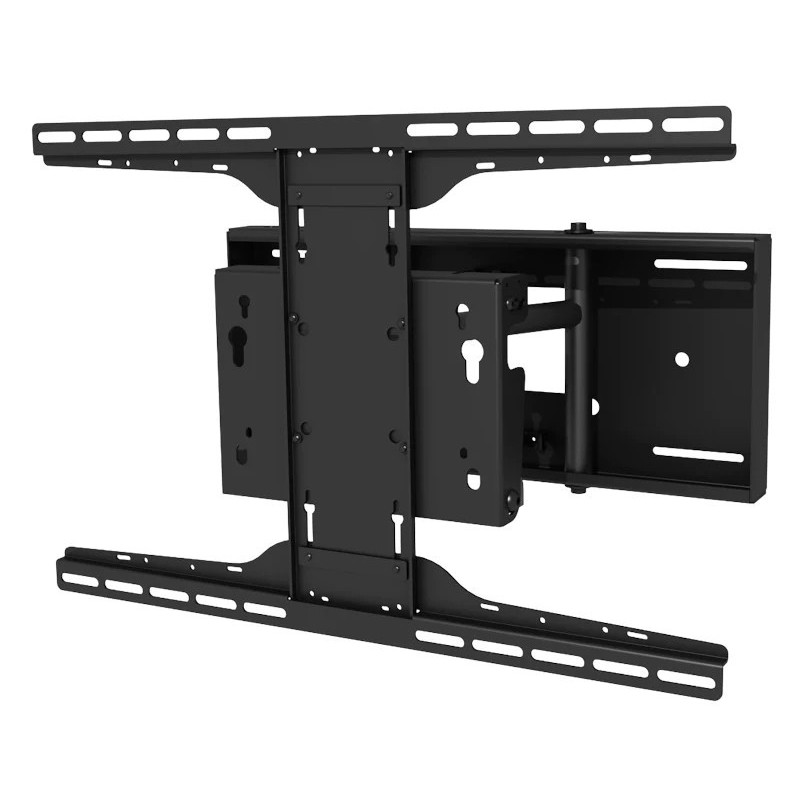

The SP850-UNL Pull-Out Pivot Mount combines the best features of a wall mount and pivot arm. When closed, the SP850-UNL acts as a flat or tilting wall mount. At only 2.73" (69mm) from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the SP850-UNL’s sturdy arm construction smoothly glides the display out 11.18" (284mm) from the wall and allows the display to pivot up to 45°. The SP850-UNL is ideal in applications where the display needs to be recessed into the wall, custom framed, or aligned into a multi-display wall.

Main features:
- Dedicated models include VESA® 100 and 200 x 100mm compliant adaptor plates (PLP or LC model adaptor plate required for non-VESA displays)
- Universal models adapt to displays with mounting holes up to 600 x 400mm (23.62" W x 15.75" H)
- IncreLok™ tilt provides tilt at 0°, 5° and 10°±1° of roll for horizontal display levelling during installation
- Mounts to 16" wood studs, concrete, and cinder block
