MOD-FPSKIT200-CPF

Peerless-AV constantly strives to improve the versatility and ease of use of our products, and having listened to the feedback from installers and integrators it is apparent that the market requires a product range that can fulfil multiple requirements from a limited number of SKUs. Thus the Modular Series has been introduced as a universal ceiling mount solution with just over a dozen components in the range, allowing the professional installer to configure their own bespoke flat panel or projector mounting solution. The MOD-FPSKIT20 comes with all of the components required to ceiling mount a single 32-75" flat panel display. However, being composed of Modular components the mount can be expanded or changed as required.

This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.

Main features:
- Portrait or Landscape screen installation for added versatility in digital signage applications
- Integrated cable channel runs through column with open access at both ends for ease of use
- MOD-FPMS Single screen mount allows addition of single screen mounting adaptor, with quick connect feature delivering -5° to +20° tilt and incremental lock at every 5° interval
- MOD-UNL Large universal adaptor supports 32-75" displays up to VESA® 600x400mm, 60kg (132lbs) max. weight
- MOD-P200 50mm diameter column supplied as 2m length and cuttable to required size

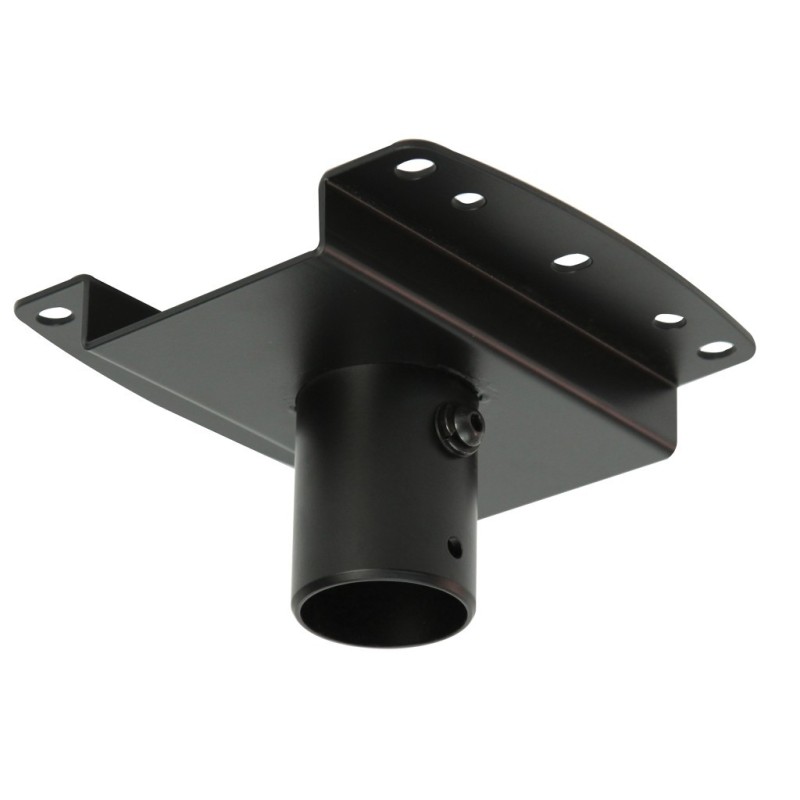

- MOD-CPF Heavy duty ceiling plate securely mounts to concrete or wood joist ceilings (Optional aesthetic cover MOD-ACF)

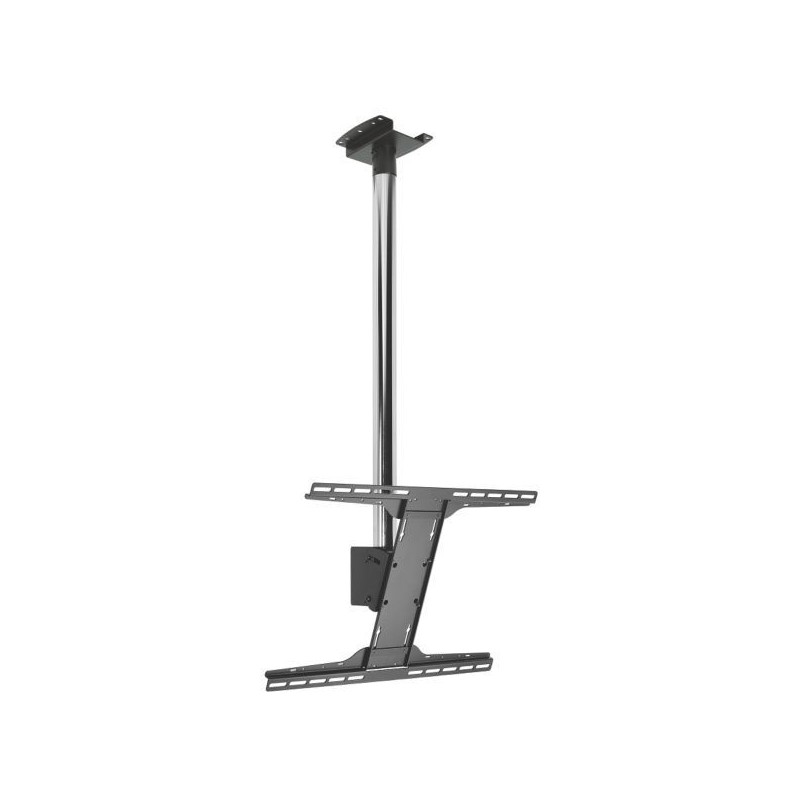

- 2m flat panel ceiling mount kit
- Kit includes following parts: 1 x MOD-CPF, 1 x MOD-P200, 1 x MOD-FPMS and 1 x MOD-UNL
